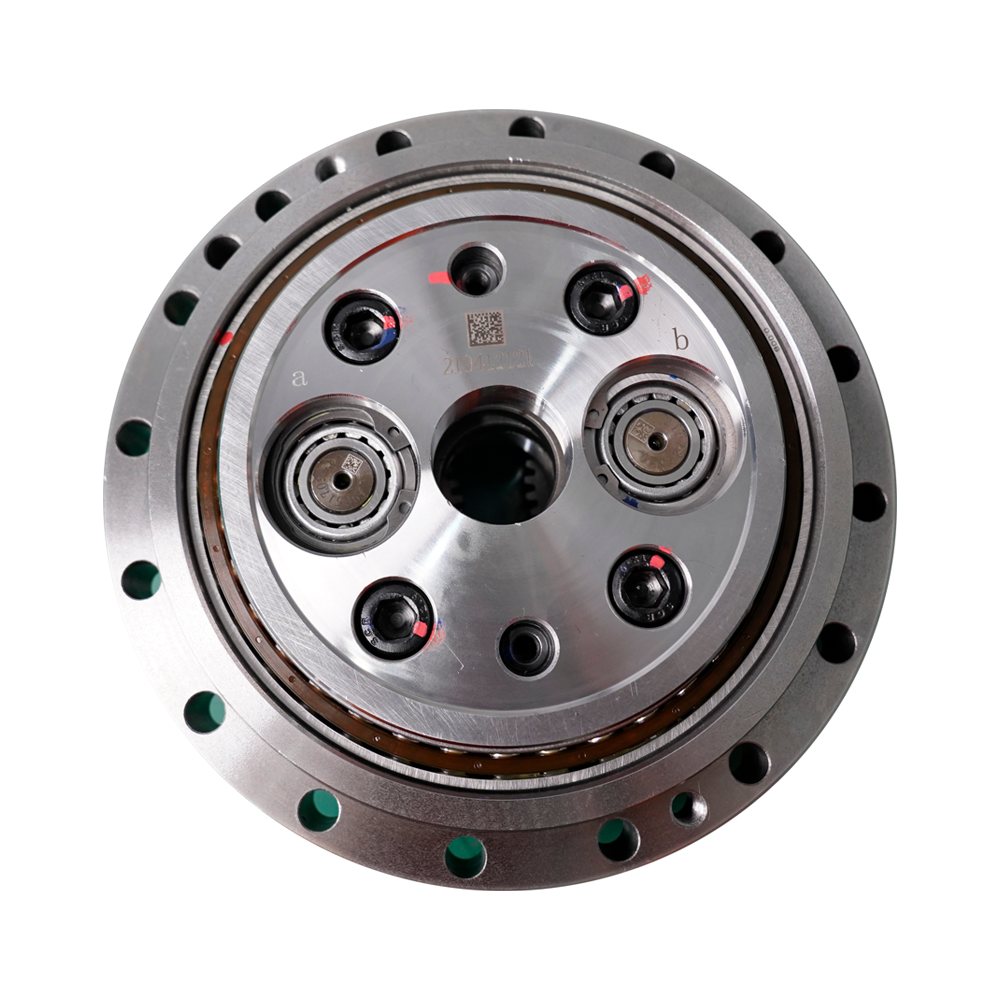

Precision Reduction Gear RV-E Reducer

Short Description:

Reduction gear RV is a reduction gear for precise motion control which uses a planocentric reduction gear mechanism. This reduction gear design has advantages in rigidity and resistace against overload with a compact body due to a large number of simultaneously engaged gear teeth. Furthermore, minimal backlash, rotational vibration and low inerita lead to rapid acceleration, smooth motion and accurate positioning.


  • Feature 1: Minimal vibration
  • Feature 2: Wide range of reduction ratios
  • Feature 3: High torque density
  • Feature 4: High shock load resistance
  • Feature 5: High rigidity
  • Feature 6: High accuracy
  • Product Detail

    Product Tags

    Precision reduction Gear RV reducer

    Since 2011, Yunhua company has started the research and development, producing and sales of RV reducer.

    As the core parts in the field of transmission, our reducers are used in industrial robots and positioner, rail transit, automotive and other fields.

    Through the continuous efforts of the new and old Yunhua technician, the E series and C series of Yunhua reducer have withstood challenge of market,

    and constantly improve the accuracy and create value for users.



    Application Field

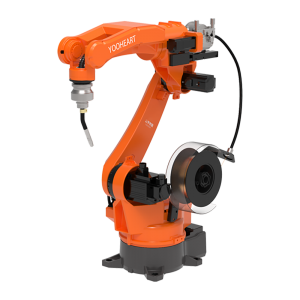

    Industrial Robot

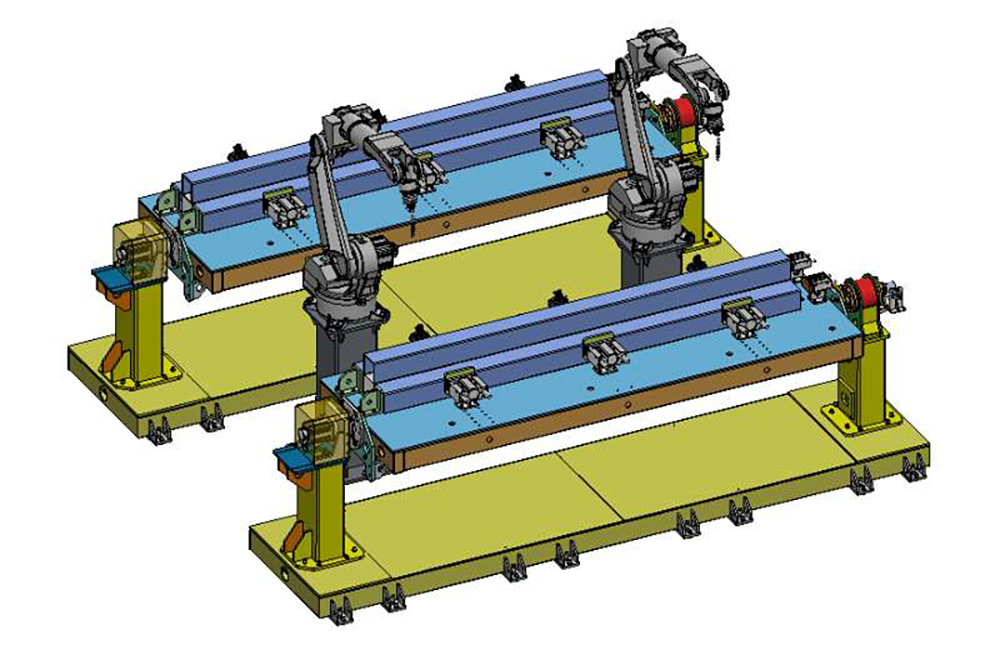

    Positioner



    Wind Turbine Generator



    Construction Machinery



    Automatic doors



    Tankers



    Technology Parameters

    Model RV-20E RV-40E RV-80E RV-110E RV-160E RV-320E
    Standard Ratio 57

    81

    105

    121

    141

    161

    57

    81

    105

    121

    153

    57

    81

    101

    121

    153

    81

    111

    161

    175.28

    81

    101

    129

    145

    171

    81

    101

    118.5

    129

    141

    153

    171

    185

    201

    Rated Torque (NM) 167 412 784 1078 1568 3136
    Allowable starting/stopping torque (Nm) 412 1029 1960 2695 3920 7840
    Momentary max.allowable torque(Nm) 833 2058 3920 5390 7840 15680
    Rated output speed (RPM) 15 15 15 15 15 15
    Allowable output speed: duty ratio 100% (reference value(rpm) 75 70 70 50 45 35
    Rated service life(h) 6000 6000 6000 6000 6000 6000
    Backlash/Lostmotion (arc.min) 1/1 1/1 1/1 1/1 1/1 1/1
    Torsional rigidity (central value) (Nm/arc.min) 49 108 196 294 392 980
    Allowable moment (Nm) 882 1666 2156 2940 3920 7056
    Allowable thrust load(N) 3920 5194 7840 10780 14700 19600

    Demension size

    Model RV-20E RV-40E RV-80E RV-110E RV-160E RV-320E
    A(mm) 65 76 84 92.5 104 125
    B(mm) 145 190 222 244h7 280h7 325h7
    C(mm) 105h6 135h7 160h7 182h7 204h7 245h7
    D(mm) 123h7 160h7 190h7 244h7 280h7 325h7

    Features

    _DSC0286

    Integrated angular ball breaings

    Benefits: increases reliabity

    Reduces overall cost

    Attributed to: Built-in angular ball bearing construction improves the ability to support external loads, increases moment rigidity and maximum allowable moment.

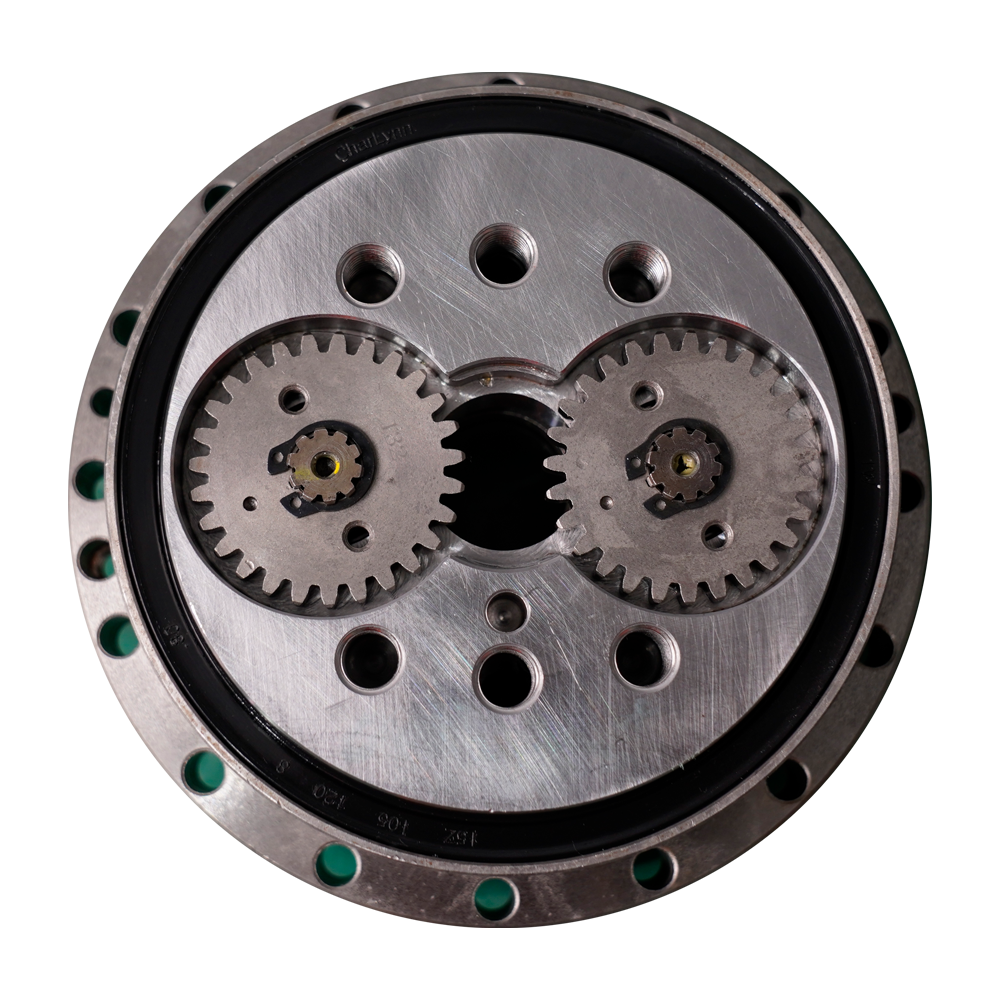

    2 Stage reduction

    Benefits: Reduces vibration, Reduces inertia

    Attributed to Low speed rotation of the RV gear reduces vibration Reduced size of the motor coupling part lowers inertia

    _DSC0213

    All main elements are supported on both sides

    Benefits:

    Higher torsional stiffness

    Less vibration

    High shock load capability

    Rolling contact elements

    Benefits:

    Excellent starting efficiency

    Low wear and longer life

    Low backlash

    _DSC0270

    Pin&gear structure

    Benefits

    Excellent starting efficiency

    Low wear and longer life

    Low backlash

    RV-E Reducer Model

    RV-20E

    RV-40E

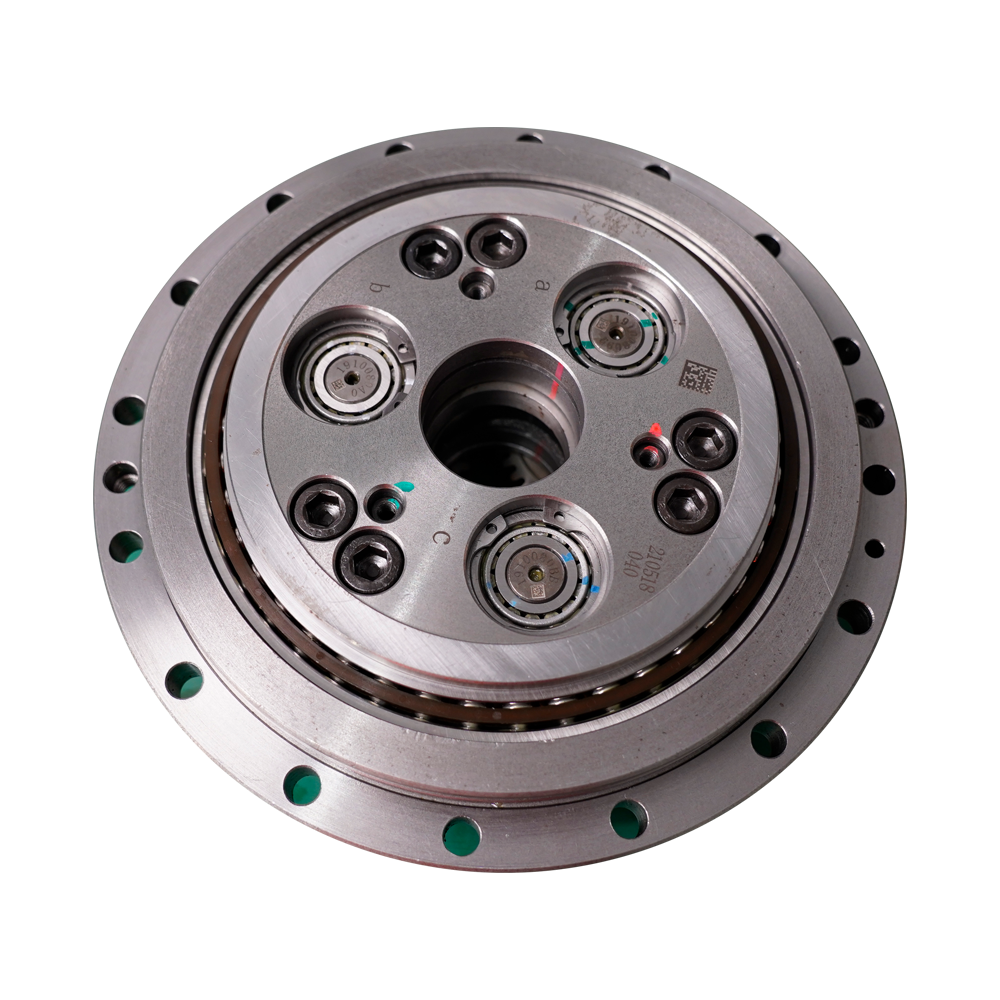

    RV-80E

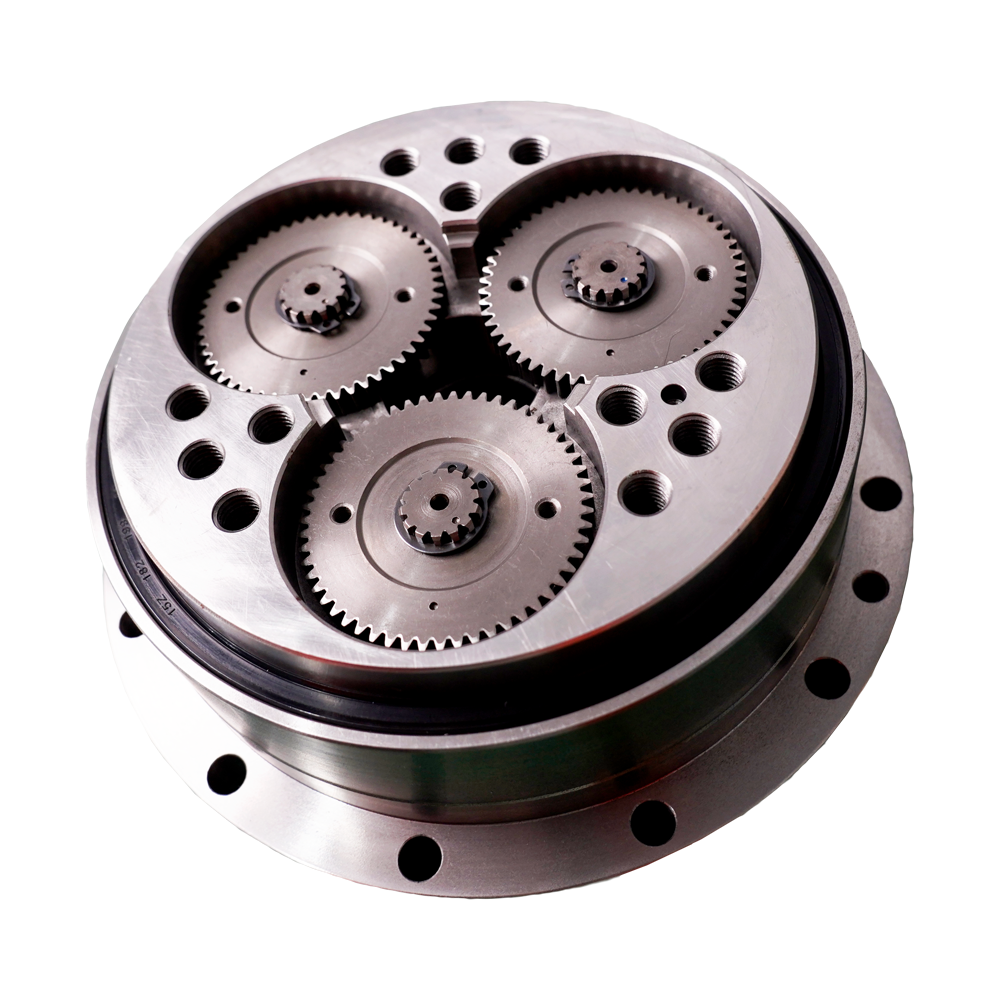

    RV-110E

    Daily Maintenance and trouble shooting

    Inspection item Trouble Cause Handling method
    Noise Abnormal noise or

    Sharp change of sound

    Reducer damaged Replace reducer
    Installation problem Check the installation
    Vibration Big vibration

    Vibration increase

    Reducer damaged Replace reducer
    Installation problem Check installation
    Surface temperature Surface temperature increase sharply Oil lack or grease deterioration Add or replace grease
    Over rated load or speed Reduce load or speed to rated value
    bolt

    Bolt loose

    bolt torque not enough

    Tightening bolt as requested

    oil leakage Junction surface oil leakage Object on junction surface clean ohject on junction surface
    O ring damaged Replace O ring
    accuracy Gap of reducer becomes larger Gear abrasion Replace reducer

    CERTIFICATION

    Official certified quality assurance

    FQA

    Q: What should I provide when I choose a gearbox/speed reducer?
    A: The best way is to provide the motor drawing with parameters. Our engineer will check and recommend the most suitable gearbox model for your reference.
    Or you can also provide the below specification as well:
    1) Type, model, and torque.
    2) Ratio or output speed
    3) Working condition and connection method
    4) Quality and installed machine name
    5) Input mode and input speed
    6) Motor brand model or flange and motor shaft size
