8 Axis Robotic Welding Workstation with Two Positioner

Short Description:

This configuration is designed for complicated work piece welding or used for for two robot working station.
it has features as below:
-More welding posture to meet welding torch
-Fast clamping with two working station
-Safety operation


Product Detail

Product Tags

Robotic Welding Workstation with Two Positioner

8 Axis Robotic Welding Workstation

Product Introduction

How to increase efficiency of robot working? Add one more work table will be an effective method. The worker will pick the work piece on one working table while robot will weld on the other working table so that robot can weld work piece continuously.

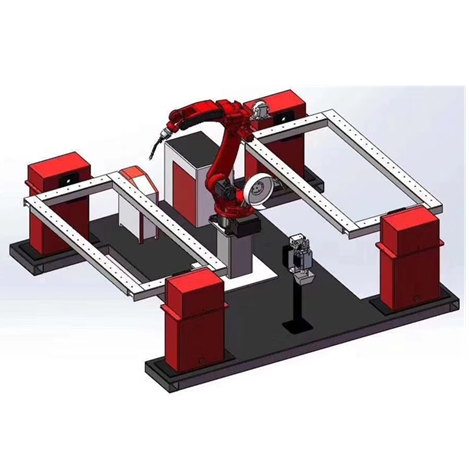

1-robot-with-two-frame-positioner-3D

PRODUCT PARAMETER& DETAILS

Our 8 Axis robotic welding workstation with two positioners is one of the standard workstation. The additional external axis can synergy with robot so that robot can finish some complicated application. These two positioners can also be called working table and can be controlled by remote control box. Once worker finish the fix-up work and press remote control box. Robot will go to this weld table welding after finish the previous one. We can connect torch clean station which is helpful for welding torch.

Application

8-axis-robot-working-station-debugging

FIGURE 1

Introduction

8 Axis robot working station

FIGURE 2

Introduction

Robot with two axis positioner

Image-file-import-for-arc-welding-multilayer-welding
fish-scale-welding

FIGURE 1

Introduction

Fish scale welding performance

DELIVERY AND SHIPMENT

YOO HEART company can offer customers with different terms of delivery. Customers can choose shipping way by sea or by air according to urgency priority. YOO HEART robot packaging cases can meet sea and air freight requirement. We’ll prepare all files like PL, the certificate of origin, invoice and other files. There is a worker whose main job is make sure every robot can be delivered to customer port without a hitch in 20 working days.

Packing

packing and delivery site

truck delivery from factory to final customer

After sale service
Every customer should know YOO HEART robot good before they buy it. Once customers have one YOO HEART robot, their worker will have 3-5 days free training in YOO HEART factory. There will be a wechat group or whatsapp group, our technicians who are responsible for after sale service, electrical, hardware, software, etc, will be in. If one problem happens twice, our technician will go to customer company to solve the problem.

FQA
Q1. What’s the difference the positioner controlled by plc and by control system.
A. The biggest problem is if positioner controlled by PLC, it can only move from on position to the other position, the robot can’t collaborate with positioner (synergy). while using control system, it can collaborate with positioner. Of course, they have different technology difficulty.

Q2. How to connect auto-fix up table?
A. Now, we have 22input and 22 output. You just need to give signals to the electromagnetic valve.

 Q3. Do you have torch clean station in your working station?
A. We have torch clean station in the working station. It’s an optional item.

 Q4. How to connect torch clean station and how to use it?
A. You will get a manuals for torch clean station. And you just need to give signals to torch clean station and it will work.

 Q5. What kind of signals does torch clean station need?
A. There are at least 4 signals the torch clean station is needed: cutting wire signals, spray oil signal, cleaning signal, and to position signals.
