7 Axis Robotic Arc Welding Workstation

Short Description:

7 Axis robotic arc welding station is one of the compact configuration for welding, can be used for automobile spare parts, bicycle, electro car, medical apparatus and instruments, fitness equipment,fencing, drain cover,farm machinery and animal husbandry.
Robot will synergy with external axis so that can transfrom multiple positions suitable for welding.
This typical welding working station is compact, fast, easy maintaince.


Product Detail

Product Tags

8 Axis Robotic Welding Workstation

Product Introduction

In flexible automation, industrial robots are among the most important components. They allow automated processes to be adjusted rapidly. The YOO HEART robot working station and its equipment levels make processes and tasks possible which are required in industrial production for commissioning and adjustment of robot-based work cells. Even for a standard robot, it’s a small working station which can be accepted by workers.
91576514

PRODUCT PARAMETER& DETAILS

YOO HEART 7 Axis Robotic welding workstation is our best seller, if your work piece is not complicated, this workstation will help you speeding up your productivity. This station includes one 6 axis welding robot, welding power source, one axis positioner and some other useful peripheral equipment. Once you receive this unit, the robot can work after all plugs in. we can also supply simple clamps for you so that you can fit up the work piece stable and fast.

Application

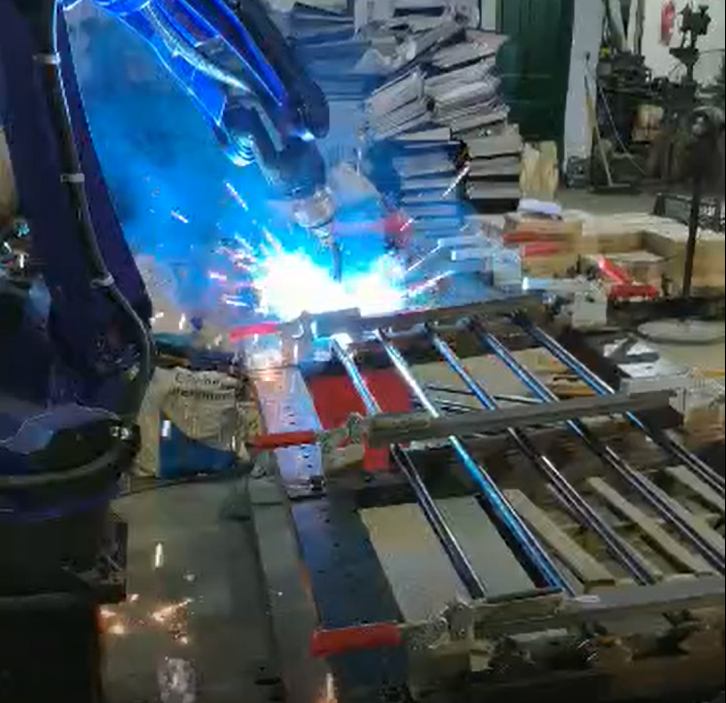

Truck door pull rod Mag welding robot

FIGURE 1

Introduction

HY1006A-145+1 Axis positioner

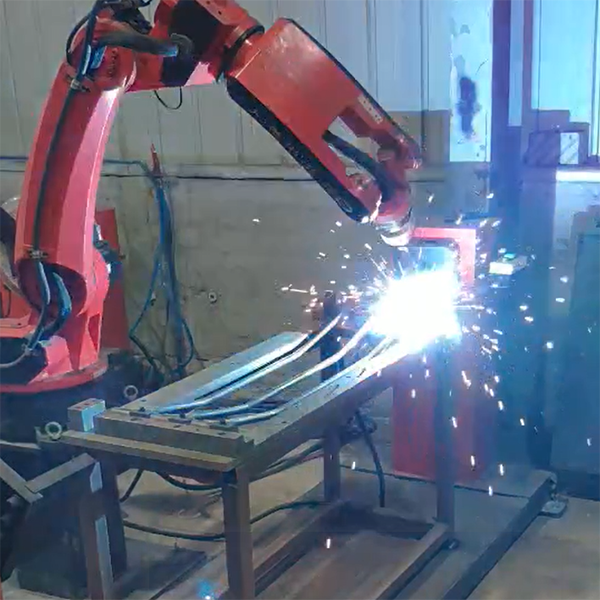

Left picture shows Standard welding robot connect external axis.

it's used for Auto parts welding. external axis can synergy with robot.

FIGURE 2

Introduction

Red Yooheart robot welding station

Right pictures is Yooheart robot used for minbus Door support  post.

Arc welding performance is good.

Robot arc welding for Van parts

Robot arc welding for Van parts

FIGURE 3

Introduction

Circle welding seam

In this picture, Using Megmeet Ehave CM 500 AR welding, TRM 500A water cooling torch and connect 1 axis positioner with table Diameter 800mm. Fillet welding.

DELIVERY AND SHIPMENT

YOO HEART company can offer customers with different terms of delivery. Customers can choose shipping way by sea or by air according to urgency priority. YOO HEART robot packaging cases can meet sea and air freight requirement. We’ll prepare all files like PL, the certificate of origin, invoice and other files. There is a worker whose main job is make sure every robot can be delivered to customer port without a hitch in 20 working days.

Packing

packing and delivery site

truck delivery from factory to final customer

After sale service
Every customer should know YOOHEART robot good before they buy it. Once customers have one YOOHEART robot, their worker will have 3-5 days free training in YOOHEART factory. There will be a wechat group or whatsapp group, our technicians who are responsible for after sale service, electrical, hard ware, software, etc. will be in. If one problem happens twice, our technician will go to customer company to solve the problem.

FQA
Q1.How many external axis can YOO HEART robot add?
A.At present, YOO HEART robot can add 3 more external axis to robot which can collaborate with robot. That is to say, we have standard robot work station with 7 axis, 8 axis and 9 axis.

Q2. If we want to add more axis to the robot, is there any choice?
A. Do you know PLC? If you know this, our robot can communicate with PLC, and then give signals to PLC to control external axis. In this way, you can add 10 or more external axis. The only shortage of this way is that the external axis can’t collaborate with robot.

Q3. How PLC communicate with robot?
A. We have i/O board in the control cabinet, there are 22 output port and 22 input port, PLC will connect I/O board and receive signals from robot.

Q4. Can we add more I/o port?
A. For simply weld application, these I/O port is enough, if you need more, we have I/O expanding board. You can add another 22 input and output.

Q5. What kind of PLC do you use?
A. Now we can connect Mitsubishi and Siemens and also some other brands.
