One Axis rotator

Short Description:

Positioner will help robot adjust work piece position as big as possible so robot torch can reach it and get good welding performance
-Payload: 250kg and can be customized
-Frame size: 1800mm*800mm and can be customized.
-Synergy with robot


Product Detail

Product Tags

one-axis-rotator-products

Product Introduction

The single axis head-tail positioner is a positioner whose head frame drives to rotate, and tail frame follows to rotate. This positioner is designed for long work piece, the work table between the head and tail can rotate to place work piece at the best welding position. This model include: basement, head frame, tail frame, working table, servo motor, RV reducer, etc.

PRODUCT PARAMETER& DETAILS



Positioner mode Voltage Insulation grade Working table Weight Min Payload
HY4030A-250A 3 phase380V±10%,50/60HZ F 1800×800mm(tailor made support) 450kg 300kg



Application

Truck door pull rod Mag welding robot

FIGURE 1

Introduction

Applications with robot

FIGURE 2

Introduction

Welding application with 1 axis head-tail support positioner

Payload: 250kg, Frame size: 1800*800mm

Robot arc welding for Van parts

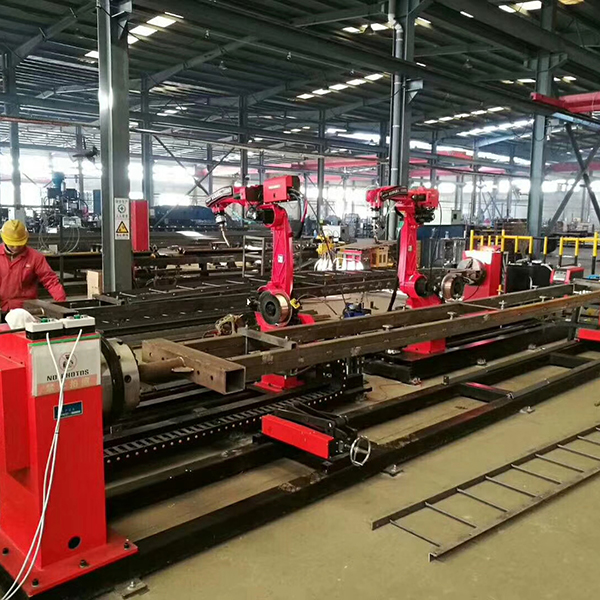

steel structure welding production line

FIGURE 1

Introduction

Three welding robot online

In this picture you will have 3 welding robot and one 4meters frame online to meet a big size product

DELIVERY AND SHIPMENT

YOO HEART company can offer customers with different terms of delivery. Customers can choose shipping way by sea or by air according to urgency priority. YOO HEART robot packaging cases can meet sea and air freight requirement. We’ll prepare all files like PL, the certificate of origin, invoice and other files. There is a worker whose main job is make sure every robot can be delivered to customer port without a hitch in 20 working days.

Packing

packing and delivery site

truck delivery from factory to final customer

After sale service
Every customer should know YOO HEART robot good before they buy it. Once customers have one YOO HEART robot, their worker will have 3-5 days free training in YOO HEART factory. There will be a wechat group or whatsapp group, our technicians who are responsible for after sale service, electrical, hard ware, software, etc. will be in. If one problem happens twice, our technician will go to customer company to solve the problem.

FQA
Q1.How many external axis can YOO HEART robot add?
A.At present, YOO HEART robot can add 3 more external axis to robot which can collaborate with robot. That is to say, we have standard robot work station with 7 axis, 8 axis and 9 axis.

Q2. If we want to add more axis to the robot, is there any choice?
A. Do you know PLC? If you know this, our robot can communicate with PLC, and then give signals to PLC to control external axis. In this way, you can add 10 or more external axis. The only shortage of this way is that the external axis can’t collaborate with robot.

Q3. How PLC communicate with robot?
A. We have i/O board in the control cabinet, there are 22 output port and 22 input port, PLC will connect I/O board and receive signals from robot.

Q4. Can we add more I/o port?
A. For simply weld application, these I/O port is enough, if you need more, we have I/O expanding board. You can add another 22 input and output.

Q5. What kind of PLC do you use?
A. Now we can connect Mitsubishi and Siemens and also some other brands.
