"Control the quality by the details, show the power by quality". Our enterprise has strived to establish a remarkably efficient and stable team team and explored an effective excellent control system for Tire Handling Robot, Spray Painting Of Robot, Robot Equipment Welding, You would not have any communication problem with us. We sincerely welcome prospects all around the globe to call us for business enterprise cooperation.
factory customized Robotic Welding Robot Arm - 6 axis Mig welding robot for storage rack – Yunhua Detail:

Product introduction

The six axis welding robot is one of the typical robot of Yooheart product. As you know, over 50% of material needed to weld is carbon steel, so in order to weld carbon steel better, there are a lot of special designs for the six axis robot. There are over 5000 units was sold in China per year because of its stability and durability.
As one of the popular industrial welding robot, it has streamline arm with min interference and max flexibility, the welding current voltage and wire feeding can be controlled at real-time. The welding parameters of the welding line can be set directly on the teaching pendant of the robot.

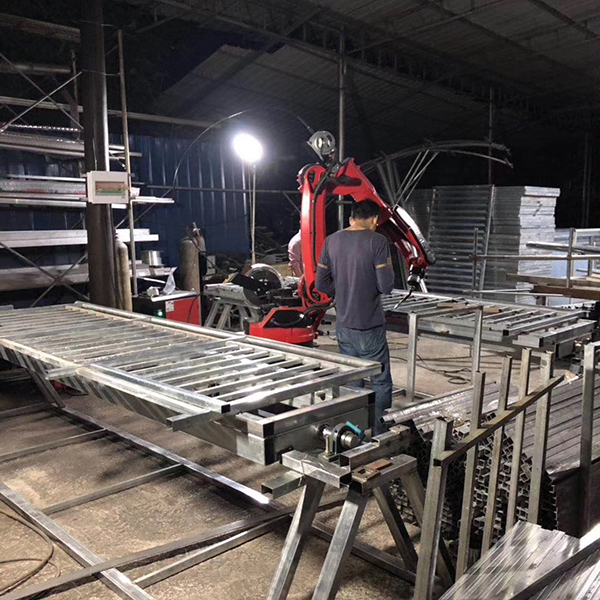

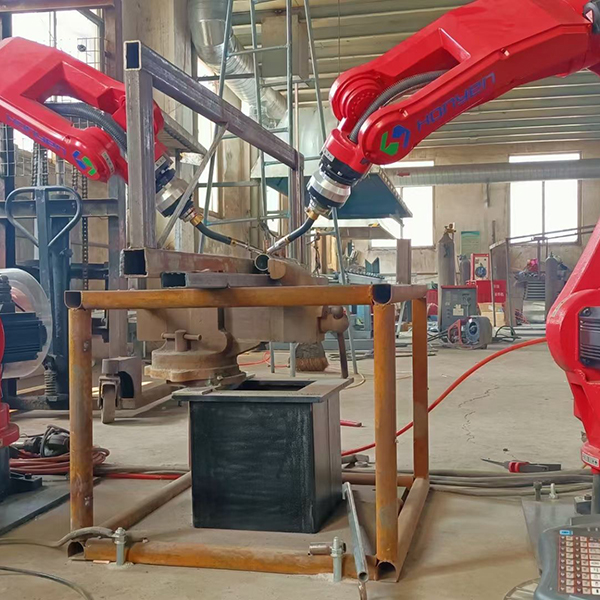

Zin coat plate welding two robot synergy together for square tube

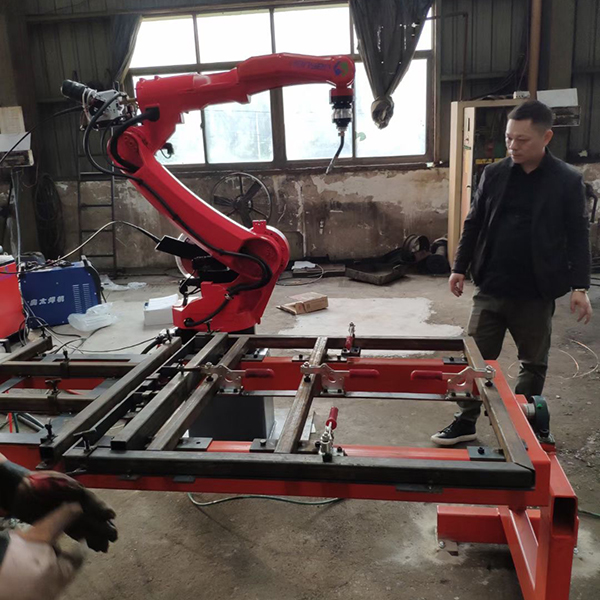

robot welding barrel

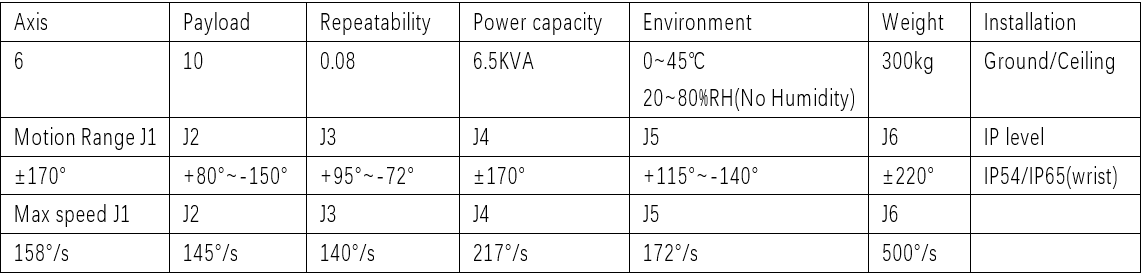

Product parameters
图片2 图片1

Applications

Delivery and shipment

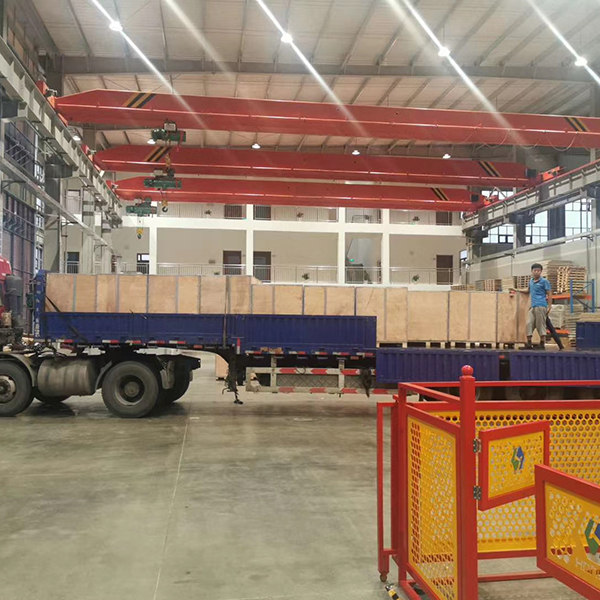

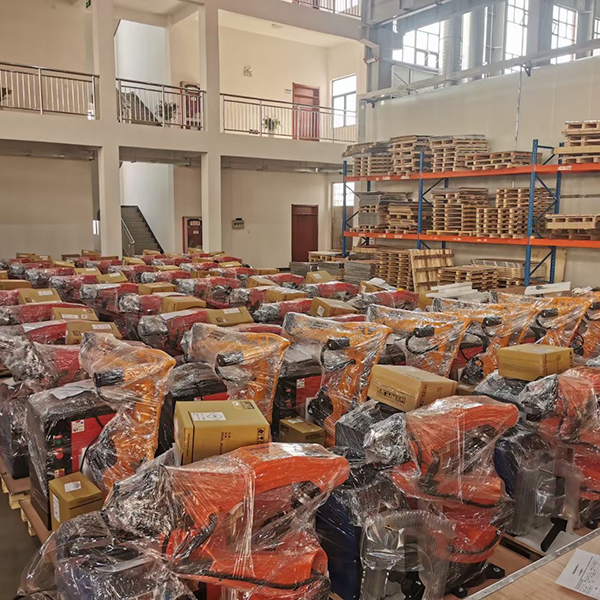

Yunhua company can offer customers with different terms of delivery. Customers can choose shipping way by sea or by air according to urgency priority. YOOHEART packaging cases can meet sea and air freight requirement. We’ll prepare all files like PL, the certificate of origin, invoice and other files. There is a worker whose main job is make sure every robot can be delivered to customers port without a hitch in 40 working days.
11f2c4ac6fabe6fc378f75930fceac9Delivery and shipment2图片2



After sale service
Every customer should know Honyen robot good before they buy it. Once customers have one Yooheart robot, their worker will have 3-5 days free training in Yunhua factory. There will be a Wechat group or WhatsApp group, our technicians who are responsible for after sale service, electrical, hard ware, software, etc, will be in. If one problem happens twice, our technician will go to customer company to solve the problem.

FAQ

Q. How many external axis can Yooheart robot add?
A. At present, Noah robot can add 3 more external axis to robot which can collaborate with robot. That is to say, we have standard robot work station with 7 axis, 8 axis and 9 axis.
Q. If we want to add more axis to the robot, is there any choice?
A. Do you know PLC? If you know this, our robot can communicate with PLC, and then give signals to PLC to control external axis. In this way, you can add 10 or more external axis. The only shortage of this way is that the external axis can not collaborate with robot.
Q. How PLC communicate with robot?
A. We have i/O board in the control cabinet, there are 20 output port and 20 input port, PLC will connect I/O board and receive signals from robot.
Q. Can we add more I/o port?
A. For simply weld application, these I/O port is enough, if you need more, we have I/O expanding board. You can add another 22 input and output.
Q. What kind of PLC do you use?
A. Now we can connect Mitsubishi and Siemens and also some other brands.






Product detail pictures:

factory customized Robotic Welding Robot Arm - 6 axis Mig welding robot for storage rack – Yunhua detail pictures

factory customized Robotic Welding Robot Arm - 6 axis Mig welding robot for storage rack – Yunhua detail pictures

factory customized Robotic Welding Robot Arm - 6 axis Mig welding robot for storage rack – Yunhua detail pictures
